Scoreboards and Message Boards

Scoreboards.net manufacturers a wide variety of information boards for nearly any application. We also have extensive experience in providing customized solutions. Whatever your need, we can build it. We take great pride in our ability to do what other companies can not. Some of our satisfied customers include Citgo Petrochemicals, Corpus Christi, Texas, ESPN Television, Walt Disney Wide World of Sports in Orlando, Florida, United States Army, professional baseball teams in Mexico, colleges and college sports teams, and many more. We can provide any combination of message boards with or without scoreboards. References will be provided upon request.

The message boards and scoreboards can be any size or shape. The frames of the boards receive a powder coat finish in the color of your choice. The displays can be any color. They can have either dot matrix or seven segment displays. Matrix displays can be any size up to 2048 pixels and are available in dot pitches of 1 inch and 1.5 inches. Individual pixels are composed of either one or four super bright, wide angle Piranha style LEDs. The LEDs that we use are the absolute highest quality and we drive them using a special method which gives them a lifespan of 100,000 hours. - We make the best quality, longest lasting scoreboards period. Seven segment displays are available from 9 inches tall to 30 inches tall on both scoreboards and message boards. The software is modular and can be customized to fit your application. The boards can be controlled from either a hand held controller or a personal computer running our control program. Our software can be integrated into any systems which you already have in place, permitting connection to a database, or inter-company communication network. Communication between the controller and display boards or scoreboards can be through the existing power line, RS-485 through a twisted pair cable, or spread spectrum radio.

Features Include:

From one to seven different fonts available, depending on model.
Up to 32 boards can be joined to behave as one display.
LED pitch (spacing) of 1 inch and 1-1/2 inches depending on model.
Many special effects including, stationary, scroll left or right, fade-in and fade-out, typewriter.
Position message using left, right, or center justification.
Control available using control box or personal computer.
Connection to message board available using your choice of spread spectrum radio or industry standard RS-485.
Standard LED colors are red and amber.
Easy to use, programmable messages and display timing.
Give us a call to discuss your specific requirements. We will usually add requested features at little or no additional cost!

Matrix MX Series

Four New Style - Super Bright, Wide Angle LEDs Are Used For Each Pixel!

The matrix MX Series is a custom built display based on one of two standard PC boards. The total number of LEDs per board is 256. MX-1.0 has four LEDs per pixel with 8 by 8 dots (pixels) spaced on 1 inch centers. The total number of LEDs per board is 256. MX-1.5 has four LEDs per pixel with 8 by 8 dots (pixels) spaced on 1 � inch centers. The total number of LEDs per board is 256.

Naming convention for MX Series Message Boards, for example: MX-1.5-16x96

MX (model) - 1.5 (pitch in inches) - 16 (pixels tall) x 96 (pixels wide)

Click Here to Download Description of Matrix Series Message Boards

Click Here For a Description of PC control program

Funding a problem? Want a larger message board with more features?

You can now lease any message board. Call (800) 230-0948 for details.

Model	Click on a Message Board	Description	More Info

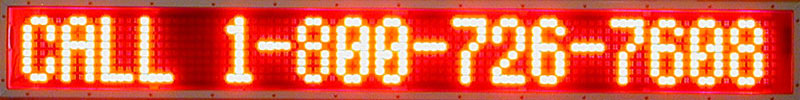

MX1-8x48	Click On Message Boards For More Information	Works well with any of our scoreboards. 8 x 48 pixels, 1 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 12" tall x 54" wide x 4" deep. Approximate weight is 35 lbs. Shipping weight is approximately 70 lbs. Uses approximately 4 amps @ 120 volts AC.	Options Print Specs Brochures Request More Info
MX1-8x96	Click On Message Boards For More Information	Works well with any of our scoreboards. 8 x 96 pixels, 1 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 12" tall x 102" wide x 4" deep. Approximate weight is 60 lbs. Shipping weight is approximately 110 lbs. Uses approximately 6 amps @ 120 volts AC.	Options Print Specs Brochures Request More Info
MX1-16x96	Click On Message Boards For More Information	Works well with any of our scoreboards. 16 x 96 pixels, 1 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 20" tall x 102" wide x 4" deep. Approximate weight is 110 lbs. Shipping weight is approximately 150 lbs. Uses approximately 10 amps @ 120 volts AC.	Options Print Specs Brochures Request More Info
MX1.5-8x48	Click On Message Boards For More Information	Works well with any of our scoreboards. 8 x 48 pixels, 1-1/2 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 16" tall x 76" wide x 4" deep. Approximate weight is 45 lbs. Shipping weight is approximately 90 lbs. Uses approximately 4 amps @ 120 volts AC.	Options Print Specs Brochures Request More Info
MX1.5-8x64	Click On Message Boards For More Information	Works well with any of our scoreboards. 8 x 64 pixels, 1-1/2 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 16" tall x 102" wide x 4" deep. Approximate weight is 50 lbs. Shipping weight is approximately 90 lbs. Uses approximately 4 amps @ 120 volts AC.	Options Print Specs Brochures Request More Info
MX1.5-8x96	Click On Message Boards For More Information	Works well with any of our scoreboards. 8 x 96 pixels, 1-1/2 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 16" tall x 148" wide x 4" deep. Approximate weight is 80 lbs. Shipping weight is approximately 130 lbs. Uses approximately 6 amps @ 120 volts AC.	Options Print Specs Brochures Request More Info
MX1.5-16x64	Click On Message Boards For More Information	Works well with any of our scoreboards. 16 x 64 pixels, 1-1/2 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 28" tall x 102" wide x 4" deep. Approximate weight is 90 lbs. Shipping weight is approximately 130 lbs. Uses approximately 6 amps @ 120 volts AC.	Options Print Specs Brochures Request More Info
MX1.5-16x96	Click On Message Boards For More Information	Works well with any of our scoreboards. 16 x 96 pixels, 1-1/2 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 28" tall x 148" wide x 4" deep. Approximate weight is 140 lbs. Shipping weight is approximately 190 lbs. Uses approximately 10amps @ 120 volts AC.	Options Print Specs Brochures Request More Info
MX1.5-24x64	Click On Message Boards For More Information	Works well with any of our scoreboards. 24 x 64 pixels, 1-1/2 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. Communicates with a PC using RS-485 cable, or 900 MHz spread spectrum RF. Unit is 40" tall x 102" wide x 4" deep. Approximate weight is 130 lbs. Shipping weight is approximately 180 lbs. Uses approximately 8 amps @ 120 volts AC.	Options Print Specs Brochures Request More Info

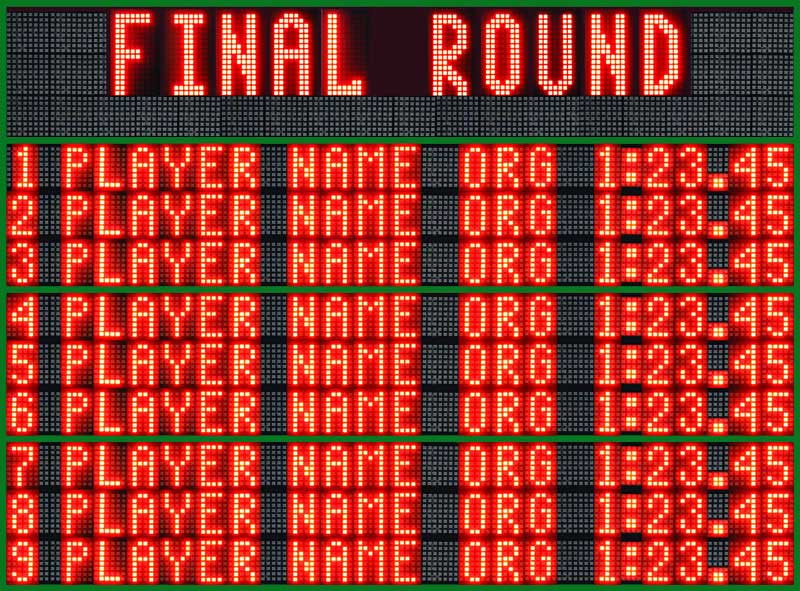

Scoreboards.net manufactures a wide range of message boards and custom displays. We have custom made special boards for rodeos, racing, industrial displays, shopping centers, schools. We have modular segment and dot addressable displays that can be assembled into almost anything that can be imagined.
