Matrix Module MX1-16x96 Perfect For Use With Our Scoreboards |
||
|
|
||
| Scoreboards have a limitation that they can only
display numerals. Why not add one of our low cost message
boards to your scoreboard purchase. Some of our scoreboards
include a message board, but if the model that you choose doesn't, don't
let that stop you. Give us a call and we will be happy to

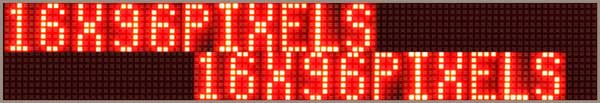

suggest an appropriate combination for your scoreboard. Dot matrix message board model MX1-16x96 specifications. 16 x 96 pixels (either 19 characters by two rows, or 9 double size characters by one row), 1 inch dot pitch matrix message board. Four LEDs per pixel. Super Bright 100 degree viewing angle LED display. Outdoor use preferred. LEDs last up to 100,000 hours. Communicates with a PC using an adapter, RS-485 cable, or 900 MHz spread spectrum. Solid aluminum welded frame with tough powder coat finish. Impact resistant polycarbonate plastic front. Weatherproof easy to install and only 4 inches thick. Unit is 20” tall x 102" wide x 4" deep. Approximate weight is 110 lbs. Uses approximately 12 amps @ 120 volts AC. Dot matrix message board model MX1-16x96 features. Control program and interface supplied when using a PC to control the message board. Can store up to 160 messages of 50 characters each. Can display and combine messages in any order. Can schedule display of up to three groups of single or multiple messages. Specific messages can be displayed on any line desired. Has three brightness levels which can be changed manually or on a schedule. Can scroll right or left at three different speeds. Ability to add a new message while other messages are concurrently being displayed. Two different preprogrammed fonts of 8 pixels tall x 4 pixels wide and 7 pixels tall x 5 pixels wide are provided. Custom message boards and scoreboards are available with your choice of features, colors, frame size, display size, logos, and more. We can build your message board or scoreboard just the way that you want it for less than you expect. Call 1-800-726-7608 and find out what we can do for you. |
||
|
