Matrix Module MB-MX-01 Perfect For Use With Our Scoreboards |
||
| Scoreboards have a limitation that they can only
display numerals. Why not add one of our low cost message
boards to your scoreboard purchase. Some of our scoreboards
include a message board, but if the model that you choose doesn't, don't
let that stop you. Give us a call and we will be happy to

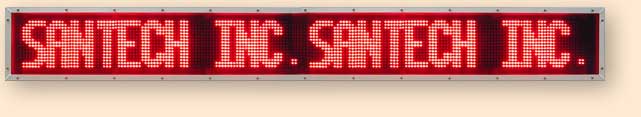

suggest an appropriate combination for your scoreboard. MB-MX-01 Dot matrix LED display message board. Available in outdoor and indoor models.
Super Bright 100 degree viewing angle LED display. The frame is constructed from continuously welded aluminum box tubing which receives a high quality painted finish. It has 1 row which has an
8 inch by 96 inch display area composed of 8 by 96 pixels on a 1" dot pitch.
Each pixel is consists of 4 super flux LEDs. The display is monochrome red. LED displays last up to 100,000 hours. The message board is operated by a standard PC running our control program
or a separate control box. The program permits dot addressable graphics as well as text. Messages are entered and displayed sequentially.
The message board is controlled either through
a PC using a scoreboards interface, RS-485 interface which plugs into a PC serial port,
or the control box using a power line communication interface. It uses less than
3 amperes of current at 120 volts AC. Size is 12 inches tall by
100 inches wide by 4 inches deep. Weight is approximately 70 pounds. |
||
