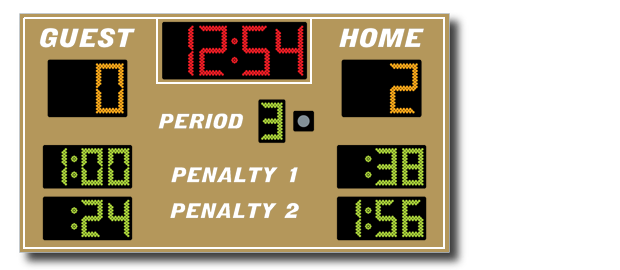

Hockey Scoreboards by scoreboards.net Model DN-8650
Indoor LED Hockey Scoreboard
Model DN-8650
Cabinet Size: 5 ft. x 9 ft. x 6 in.     Power Requirements: 120 VAC, 2 amps, 60 Hz.
COLOR OPTIONS
Select primary color
Select Accent colors
COLOR OPTIONS
Primary:
Metallic Gold
Accent:
White
SUPPORT DOCS
Scoreboard Product Sheet
Scoreboard Specifications
Owner's Handbook
STANDARD FEATURES
100% solid state microprocessor-controlled electronics
Simplified 15-key control console
Junction box and 10 ft. patch cable for data
Automotive grade baked-on enamel-based paint (choose from 16 standard colors)
Rust-free aluminum cabinet
ETL listed to UL standard
Five-year limited warranty
Toll-free technical support via phone for the life of the product
OPTIONS & UPGRADES
Wireless RF communication system
Data cable
Carrying case for control console
Team Name in place of HOME
Up to four console outputs for multiple displays
DISPLAY FEATURES
Guest Penalty Time 1:
 9 in.
Guest Penalty Time 2:
 9 in.
Home Penalty Time 1:
 9 in.
Home Penalty Time 2:
 9 in.
Clock:
 12 in.
Guest Score:
 12 in.
Home Score:
 12 in.
Period: 9 in.

Hockey Scoreboard Model DN-8650

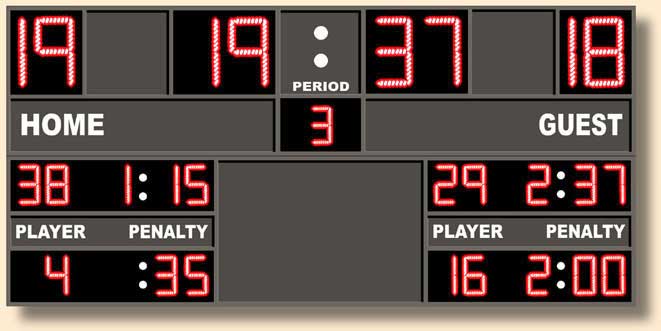

GM-HK-03 Hockey scoreboard with LED displays and wireless control. The frame is constructed from continuously welded aluminum box tubing which receives a high quality baked on powder coat finish. It has 17 inch tall LED digits for clock, and score, and 9 inch tall LED displays for period, player number, and penalty. Game time counts down or up. Maximum time is 59 minutes and 59 seconds. May display time of day when game is over. Player number can be set up to 99. Penalty value is preset to 2 minutes, but may be changed by the operator and is activated with one button for each player. Display illumination can be adjusted to three levels. A loud horn with adjustable duration is standard. The last minute of game time displays tenths of seconds. Scores up to 19. Optionally can score up to 99. LED displays last up to 100,000 hours. The included wireless controller means that there are no cables to worry about. Just plug it in and play. It uses less than 5 amperes of current at 120 volts AC. Size is 69 inches tall by 144 inches wide by 2 inches deep. Weight is approximately 150 pounds.

Custom hockey scoreboards are available with your choice of features, colors, frame size, display size, logos, and more. We can build your scoreboard just the way that you want it for less than you expect. Call 1-(800) 230-0948 and find out what we can do for you.

I Am Interested In The Model DN-8650 Hockey Scoreboard.

How did you hear about us?



Please contact me with information on this scoreboard including the following options.

I prefer to be contacted by:

Email:

Telephone:

More information about available options can be found on our Options Page.

Custom Paint Color:     Horn:     Sponsor Panels:     Team Logo:     Custom Lettering:

Custom Sized Scoreboard:     Sliding Lettering:     Battery Powered Scoreboard:

Change Digit Sizes To 9", 17", 24", or 33" Tall:     Custom Digit Color:     Radar Gun:

Dot Matrix Color Displays:     *Custom Scoreboard Controls:     Custom Display Arrangement:

* Custom scoreboard controls includes computer control, cable options, and RF options.
