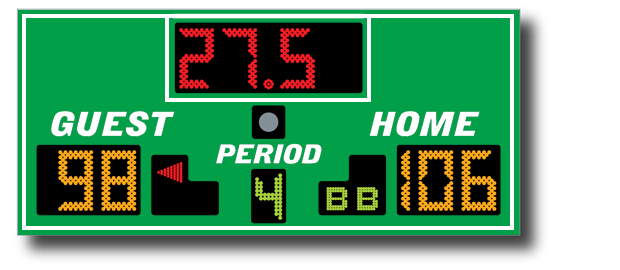

Basketball Scoreboards by scoreboards.net Model DN-2330

Indoor LED Basketball Scoreboard

Model DN-2330

Cabinet Size: 3 ft. x 6-1/2 ft. x 6 in. Power Requirements: 120 VAC, 1 amp, 60 Hz.

COLOR OPTIONS
Select primary color
Select Accent colors

COLOR OPTIONS
	Primary:	Shamrock Green
	Accent:	White

SUPPORT DOCS

Scoreboard Product Sheet

Scoreboard Specifications

Owner's Handbook

STANDARD FEATURES

100% solid state microprocessor-controlled electronics

Simplified 15-key control console

Junction box and 10 ft. patch cable for data

Automotive grade baked-on enamel-based paint (choose from 16 standard colors)

Rust-free aluminum cabinet

ETL listed to UL standard

Five-year limited warranty

Toll-free technical support via phone for the life of the product

OPTIONS & UPGRADES

Wireless RF communication system

Data cable

Carrying case for control console

Up to four console outputs for multiple displays

DISPLAY FEATURES
Clock:	9 in.
Guest Score:	9 in.
Home Score:	9 in.
Period:	6 in.
Guest Bonus 1:	3 in.
Guest Bonus 2:	3 in.
Guest Possession:	3 in.
Home Bonus 1:	3 in.
Home Bonus 2:	3 in.
Home Possession:	3 in.

Basketball Scoreboard Model DN-2330

Special Deal on Model BK-01 With Sponsor Panel On Top Including Logo.
Also includes 120 VAC powered Radio Frequency Transmitter.
5 Year Warranty.

GM-BK-01 Basketball scoreboard with LED displays and wireless control. The frame is constructed from continuously welded aluminum box tubing which receives a high quality baked on powder coat finish. It has 17 inch tall LED digits for clock, score, and period and LED indicator lights for bonus and possession. Maximum time is 59 minutes and 59 seconds. Can display time of day when game is over. Display illumination may be adjusted to three levels. A loud horn with adjustable duration is standard. The last minute of game time displays tenths of seconds, a feature often requested for track meets. Scores up to 99. Optionally can score up to 199. LED displays last up to 100,000 hours. The wireless controller means that there are no cables to worry about. Just plug it in and play. It uses less than 2 amperes of current at 120 volts AC. Size is 49 inches tall by 96 inches wide by 2 inches deep. Weight is approximately 80 pounds.

Custom basketball scoreboards are available with your choice of features, colors, frame size, display size, logos, and more. We can build your scoreboard just the way that you want it for less than you expect. Call 1-(800) 230-0948 and find out what we can do for you.

I Am Interested In The Model DN-2330 Basketball Scoreboard.

How did you hear about us?

Please contact me with information on this scoreboard including the following options.

I prefer to be contacted by:

Email:

Telephone:

More information about available options can be found on our Options Page.

Custom Paint Color: Horn: Sponsor Panels: Team Logo: Custom Lettering:

Custom Sized Scoreboard: Sliding Lettering: Battery Powered Scoreboard:

Change Digit Sizes To 9", 17", 24", or 33" Tall: Custom Digit Color: Radar Gun:

Dot Matrix Color Displays: *Custom Scoreboard Controls: Custom Display Arrangement:

* Custom scoreboard controls includes computer control, cable options, and RF options.
